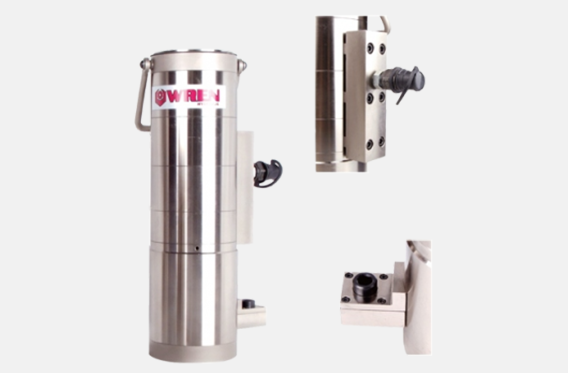

MULTIPLE CYLINDER TENSIONER

Product - MULTIPLE CYLINDER TENSIONER

MULTIPLE CYLINDER TENSIONER

Pooja International is a reputed stockiest of Multiple cylinder tensioner that come with innovative features and unique specifications. With optimum stroke capacity, operational pressure, and varied bolt sizes, this particular equipment delivers excellent performance aross projects. Take a look at the features that makes it popular:

  1. Strong and robust supporting capacity
  2. Suitable for narrow and confined spaces
  3. Perfect for frequent operations
  4. Operates with high-pressure heat electrical and hand pumps
MULTIPLE CYLINDER TENSIONER

Technical Data

Model
HTE36-00 HTE42-00 HTE42A-00
Maximum Operation Pressure 1035bar 1050bar 1305bar
Maximum Output Capacity 800KN 1039KN 800KN
Maximum Stroke 10mm 10mm 10mm
Cylinder Effective Area 6126mm2 9896mm2 6126mm2
Quantity of Cylinder Step 3 3 3
Outside Diameter 100mm 105mm 111mm
Bolt Size
  1. Multigrade Cylinder Design, Increase the Tension Length Strong capacity with small outside diameter, it is suit for the operation at narrow space.
  2. 700-1500bar operation pressure Spring return protect for the stroke over the maximum value, it is suit for operation frequently.
  3. Operate by Super High Pressure Hand Pumps and Electrical Pump
