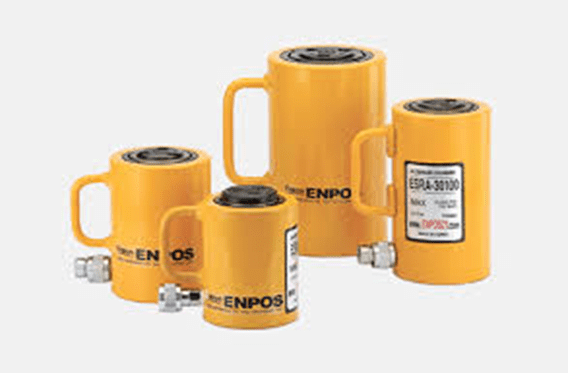

Optimum portability is a prime requisite in industrial projects. The lightweight, aluminum design, and unique features ensure optimum portability. You can use our aluminum jacks in a plethora of positions. The presence of commercial-grade plunger wiper extends the life of the equipment. The high-quality Aluminum Jacks have mounting collars that ensure full-fledged grip. Presence of G3/8 coupler port enhances it functionalities to a great extent. Check the specs like cylindrical bore diameter for full-throttle coverage.

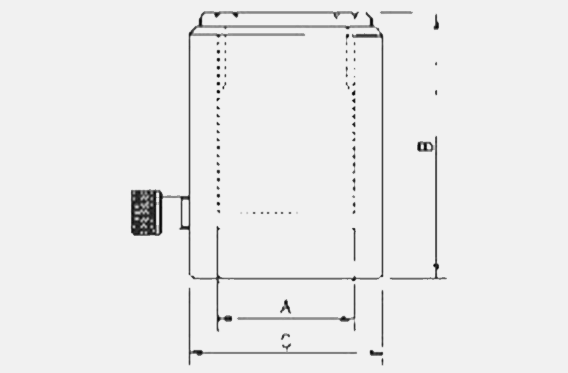

| Model | Cyl.Capacity (tons) | Stroke (mm) | Oil Capacity (cc) | Effect Area (cm2) | Cyl Bore Diameter (mm) | Collapsed Height (mm) | Outside Diameter (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| A | B | C | ||||||
| ESRA-2050 | 20 | 50 | 156 | 31.2 | 63 | 128 | 96 | 2.5 |
| ESRA-20100 | 100 | 312 | 178 | 98 | 4.5 | |||
| ESRA-20150 | 150 | 468 | 228 | 4.5 | ||||
| ESRA-3050 | 30 | 50 | 221 | 44.2 | 75 | 137 | 108 | 3.8 |
| ESRA-30100 | 100 | 442 | 287 | 5.2 | ||||
| ESRA-30150 | 150 | 663 | 237 | 6.6 | ||||
| ESRA-5050 | 50 | 50 | 354 | 70.8 | 95 | 147 | 136 | 6.8 |
| ESRA-50100 | 100 | 708 | 297 | 9.1 | ||||
| ESRA-50150 | 150 | 1062 | 247 | 11.4 | ||||
| ESRA-10050 | 100 | 50 | 716 | 143.1 | 135 | 175 | 195 | 16 |
| ESRA-100100 | 100 | 1431 | 225 | 19.5 | ||||
| ESRA-100150 | 150 | 2147 | 275 | 23 |
