- ESCH (Single-acting, spring return)
- EDCH (Double-acting, hydraulic return)
- Plunger design allows for both pull and push force
- Aluminum tube is available (optional)
- Special size is available(optional).

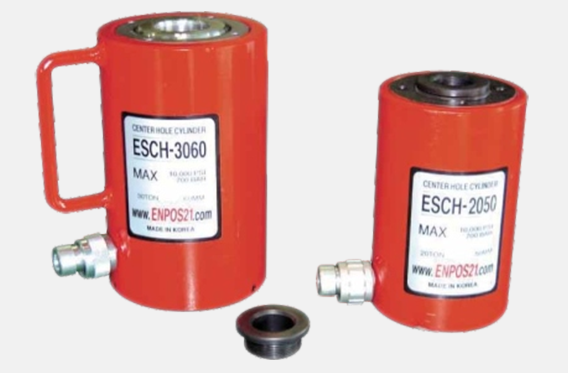

The ESCH and EDCH models happen to be the best options in industrial Jacks. Center-hole jacks are used in heavy-industrial lifting and we always strive hard to stock top-quality products. The aluminum tube is present in most of the models and plunger design ensures quick push-and-pull. Pooja International manufactures and supplies both single-acting and double-acting jacks with spring and hydraulic returns respectively. Using this particular equipment will ease workload and ensure quick deliveries.

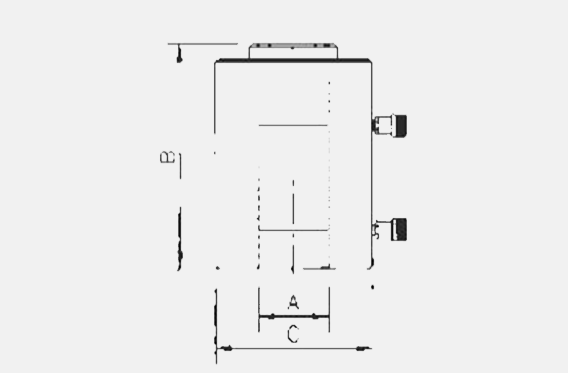

| Model | Cyl.Capacity (tons) | Stroke (mm) | Oil Capacity (cc) | Effect Area (cm2) | Cyl Bore Diameter (mm) | Collapsed Height (mm) | Outside Diameter (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| A | B | C | ||||||
| ESCH-1240 | 12 | 40 | 76 | 19 | 20 | 130 | 80 | 4.8 |
| ESCH-2050 | 20 | 50 | 158.4 | 31.7 | 27 | 135 | 98 | 5 |
| ESCH-3060 | 30 | 60 | 300.6 | 47.7 | 36 | 178 | 115 | 11.5 |
| ESCH-5075 | 50 | 75 | 650 | 85.5 | 54 | 235 | 159 | 28.1 |
| ESCH-10075 | 100 | 1049 | 138.1 | 80 | 254 | 216 | 52.5 |
