- Safety LOCK OUT for mechanical holding load holding
- Spring return type optional
- ELNR series is used for variety industries.
- Special size is available (optional).
- Smooth piston resist friction & corrosion-
- Tilting saddle is available(optional).

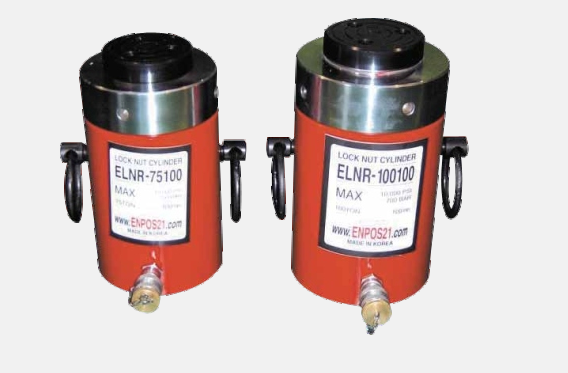

Our Lock Nut Jacks come in a variety of specifications and belong to the ELNR model. Depending on the specifications and requirements of the project, you can opt for 30200 or 200230 models. The safety-lock feature ensures secured holding and this particular equipment is appropriate for heavy-mechanical projects. On request, operators can choose special models that ensure smooth functioning and swift maneuverability. The piston is friction-resistant and can support strong loads.
| Model | Cyl.Capacity (tons) | Stroke (mm) | Oil Capacity (cc) | Effect Area (cm2) | Cyl Bore Diameter (mm) | Collapsed Height (mm) | Outside Diameter (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| A | B | C | ||||||
| ELNR-30200 | 30 | 200 | 884 | 38.4 | 70 | 405 | 102 | 23 |
| ELNR-50200 | 50 | 1141 | 63.6 | 90 | 424 | 127 | 38 | |
| ELNR-100230 | 100 | 230 | 3292 | 132.7 | 130 | 499 | 185 | 95 |
| ELNR-150230 | 150 | 4918 | 201 | 160 | 578 | 225 | 164 | |
| ELNR-200230 | 200 | 6562 | 268.8 | 185 | 615 | 255 | 224 |
