Single Acting Jacks

Single Acting Jacks

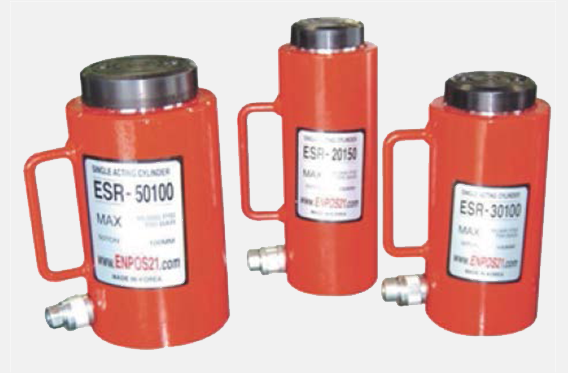

Our Single Acting Jacks are manufactured with optimum precision and studded with unique features. Those looking for commercial-grade hydraulic jacks can rely on our products, since we offer the following specifications:

  1. Spring-turn with single-acting controls
  2. Presence of dust-cap along with highly functional high-flow coupler
  3. Corrosion and friction resistance guaranteed by smooth piston surface
  4. Specially designed mounting collar for full-throttle
  5. Robust plunger with a hard and strong saddle

These spectacular features define the exceptional performance of our single acting jacks

Model Cyl.Capacity (tons) Stroke (mm) Oil Capacity (cc) Effect Area (cm2) Cyl Bore Diameter (mm) Collapsed Height (mm) Outside Diameter (mm) Base to ADV.(mm) Weight (kg)
A B C D
ESR-1050 10 50 80 15.9 45 147 63 20 3.2
ESR-10100 100 159 197 3.8
ESR-10150 150 239 247 5.6
ESR-2050 20 50 166 33.2 65 160 88 27 7.8
ESR-20100 100 332 210 9.9
ESR-20150 150 498 260 4.5
ESR-3050 30 50 221 44.2 75 172 106 30 8
ESR-30100 100 442 222 11.8
ESR-30150 150 663 272 15.6
ESR-5050 50 50 354 70.8 95 190 130 30 19
ESR-50100 100 708 240 22.7
ESR-50150 150 1062 290 26.4
ESR-100100 100 100 1431 143.1 135 272 185 45 54
ESR-100150 150 2147 322 63
  1. Single-acting, spring return
  2. Equipped with high-flow coupler and dust cap
  3. Mounting collar designed to hold full force.
  4. Smooth piston resist friction and corrosion
  5. Solid plunger with hardened saddle
  6. Coupler Port G3/8
  7. Tilting saddle is available(optional)
  8. Handle is available(optional)
  9. Special size is available(optional)
