- 4 Standard models
- Spring-Return

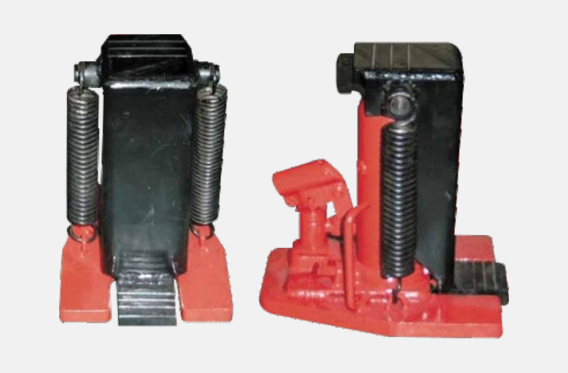

Get the exclusive range of Toe Jacks that belong to the EQLJ model. The up and down capacities come in various specifications ranging from 5 to 30 tons. The stroke capacity goes up to 160 mm. Spring-return features make operations easier and smooth. You can also check the standard models, as we stock 4 different varieties. Toe jacks find application in numerous projects and our top-quality products are essential for such assignments.
| Model | Cyl.Capacity (tons) | Stroke (mm) | Dimension(mm) | Weight (kg) | |||
|---|---|---|---|---|---|---|---|
| UP | DOWN | A | B | C | |||
| EOLJ-52.5 | 5 | 2.5 | 120 | 243 | 170*230 | 19 | 7.2 |
| EOLJ-105 | 10 | 5 | 150 | 290 | 188*230 | 22 | 13.5 |
| EOLJ-2010 | 20 | 10 | 160 | 333 | 245*280 | 28 | 24.5 |
| EOLJ-3015 | 30 | 15 | 253 | 273*308 | 32 | 39.5 | |
