LOW SERIES HYDRAULIC TORQUE WRENCHES

LOW SERIES HYDRAULIC TORQUE WRENCHES

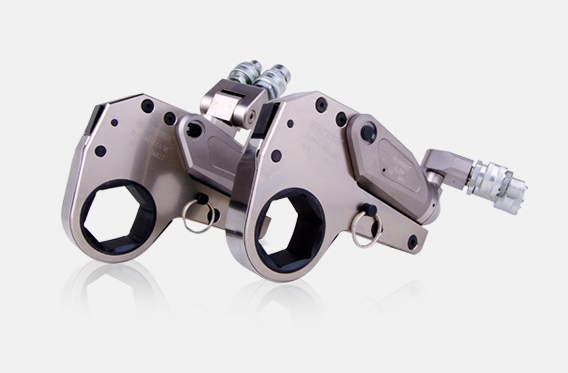

Depending on the needs of specific engineering projects, operators can choose amongst our innovative range of Low series Hydraulic Torque Wrenches that begin from 2LOW to 30LOW. The 360-degree swivel head ensures optimum coverage and free movement. Here are some of the features to note:

  1. Free arm movement
  2. Compact design
  3. Perfect design accuracy
  4. Highly intense
  5. Aluminum alloy
  6. Portable carrying box

Presence of locking coupler ensures free access to the oil. Appropriate for extensive functioning.

Hydraulic Torque Wrench Manufacturer in Mumbai
Low Series Hydraulic Torque Wrench Manufacturer in India
Hydraulic Torque Wrench Manufacturer in India
TYPE Torque Nm Nut Sizes mm Power Head Weight kg Work Head Weight kg L H1 H2
2 Low 232~2328 19~55 1 1.6 196.4 125.9 102.3
241~2414 60 1 1.7 196.4 128.5 105
4 Low 585~5858 34~65 2 4.4 245 177 135.7
647~6474 70~80 2 4.6 246 187 145.7
8 Low 1092~10941 41~95 3.3 8 300 207 169
1177~11774 1000~105 3.3 8.4 301 216 178
14 Low 1852~18521 50~117 5.5 11.6 361 239 204
30 Low 4188~41882 110~155 11.4 29 430 303 272
4459~44593 160~175 11.4 30 441 315 285
  1. 70Mpa max working pressure; keep the accuracy ±3%. 5 models with the range from 232-44593N.m 360*180 degree swivel &360*360 degree swivel allow the wrench free to operation with no space limitation.
  2. L H1 H2 W1 W2 Work Head Weight kg We customize according to your exact specifications Specifications are subject to change based on constant design improvement Power Head Weight kg Nut Sizes mm Torque Nm 2LOW 4LOW 8LOW 14LOW 30LOW
  3. HYDRAULIC TORQUE WRENCH More accuracy and easier when the wrench direct operate on the nuts Compact design with longer arm fully advances the reliability aluminum-titanium alloy, high intense.
  4. The new locking coupler ensures the oil keep free access

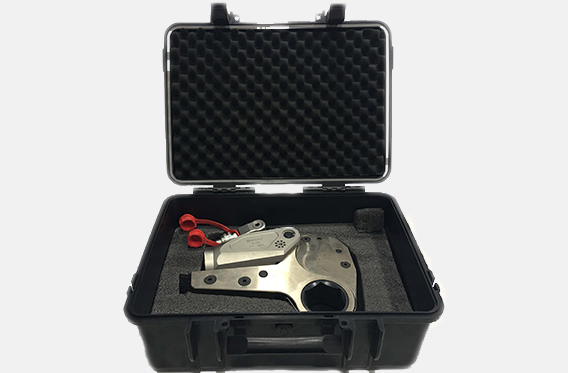

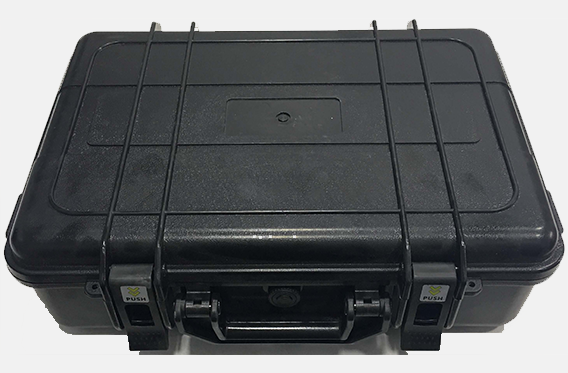

  5. Portable Carry Case
