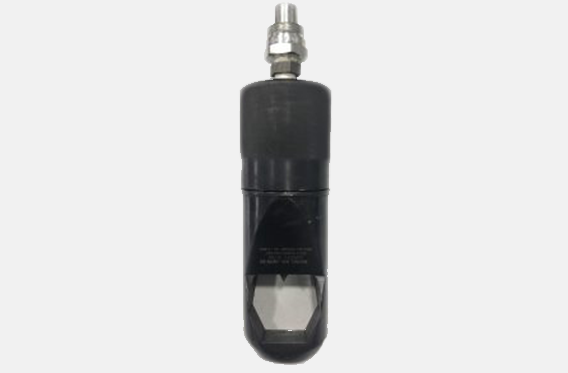

Heavy engineering and hardcore industrial projects demand the extensive usage of Hydraulic nut splitters. The features and specifications of our products are apt for large-volume projects too. From a maximum capacity of 90 tons to 35mm stroke, our hydraulic nut splitters come with distinctive features. The minimum nut size is 8mm to 39 mm whereas the maximum size happen to be 12mm to 48mm. Project operators can opt for the appropriate size based on their needs.
| Model No JNHS | |||||||
|---|---|---|---|---|---|---|---|
| Capacity Ton Max | 5 | 11 | 16 | 22 | 32 | 50 | 90 |
| Stroke (MM) max | 18 | 18 | 20 | 25 | 30 | 30 | 35 |
| Min Nut A/F mm | 13 | 19 | 24 | 32 | 41 | 50 | 60 |
| Max Nut A/F mm | 19 | 24 | 32 | 41 | 50 | 60 | 75 |
| Min Nut Size mm | 8 | 12 | 16 | 22 | 27 | 33 | 39 |
| Max Nut A/F mm | 12 | 16 | 22 | 27 | 33 | 39 | 48 |
