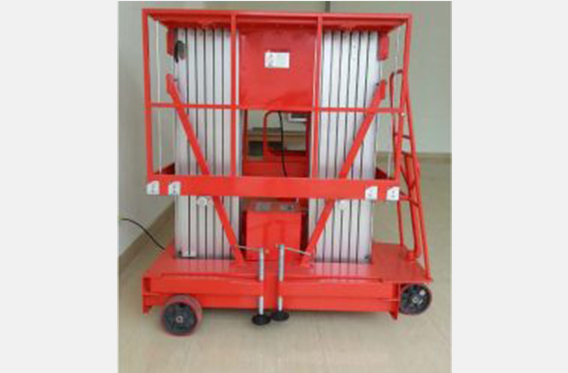

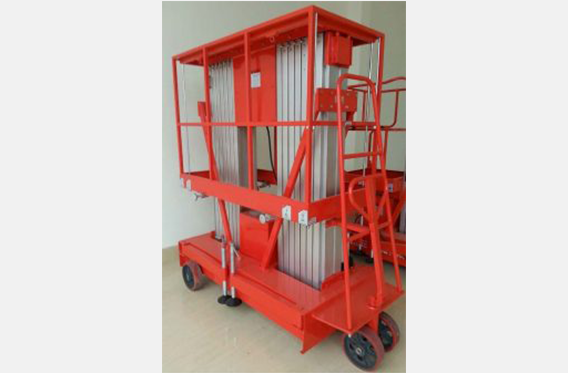

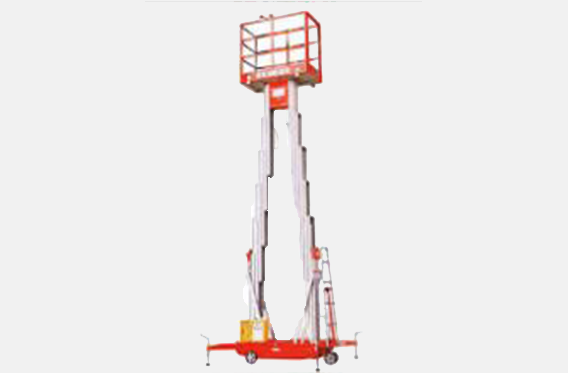

The engineer-in-charge of a project now has the option of procuring Aerial Working Platforms - Dual Mast from our company for heavyweight tasks. Each model has the capacity to lift weight of at least 200 kg. Some other specifications are given below:
Emergency release valve confirms a secured return to ground level upon power outage.

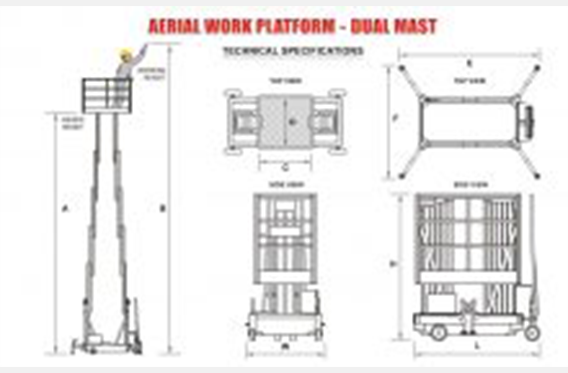

| MODEL NO. | UAWP-6 | UAWP-8 | UAWP-10 | UAWP-12 | UAWP-14 |
|---|---|---|---|---|---|
| Capacity | 250 Kg | 250 Kg | 200 Kg | 200 Kg | 200 Kg |
| Max. Platform Height (A) | 6000 mm | 8000 mm | 10000 mm | 12000 mm | 14000 mm |
| Max. Working Height (B) | 8000 mm | 10000 mm | 12000 mm | 14000 mm | 16000 mm |
| Ground Clearance | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Platform Size
(C x D) |
1380 x 600 mm | 1380 x 600 mm | 1380 x 600 mm | 1480 x 600 mm | 1580 x 600 mm |
| Lifting Motor | 1.5 Kw | 1.5 Kw | 1.5 Kw | 2.0 Kw | 2.0 Kw |
| Power | AC /Battery | AC /Battery | AC /Battery | AC /Battery | AC /Battery |
| Overall Size (L x F x H) | 1450 x 850 x 1750 mm | 1550 x 850 x 2050 mm | 1550 x 850 x 2050 mm | 1650 x 880 x 2050 mm | 1750 x 880 x 2250 mm |
| Wheel Size (Front/Rear) | 6 inch | 6 inch | 6 inch | 6 inch | 6 inch |
| Net Weight | 480 kg | 560 kg | 680 kg | 780 kg | 980 kg |
