Floor Mounted Scissor Lift With BALL TRANSFER UNITS (AC Powered)

Floor Mounted Scissor Lift With BALL TRANSFER UNITS (AC Powered)

The compact-designed, feature-packed, and high-powered Floor Mounted Scissor Lift With Ball Transfer Units (AC Powered) comes with astounding specifications. The capacity of this equipment is 1000 kg whereas the table size is at 2200*1200mm. Presence of single scissors and host burst valve enhances its functionality to a great extent. Operators can also reap the benefits of manual lowering in case they wish to perform during power outage. 4 brackets facilitate easy transfer of scissor lifts.

Floor Mounted Scissor Lift With BALL TRANSFER UNITS (AC Powered)
Floor Mounted Scissor Lift With BALL TRANSFER UNITS (AC Powered) - 1
Floor Mounted Scissor Lift With BALL TRANSFER UNITS (AC Powered) - 2
Floor Mounted Scissor Lift With BALL TRANSFER UNITS (AC Powered) - 6
Floor Mounted Scissor Lift With BALL TRANSFER UNITS (AC Powered) - 7
Floor Mounted Scissor Lift With BALL TRANSFER UNITS (AC Powered) - 8

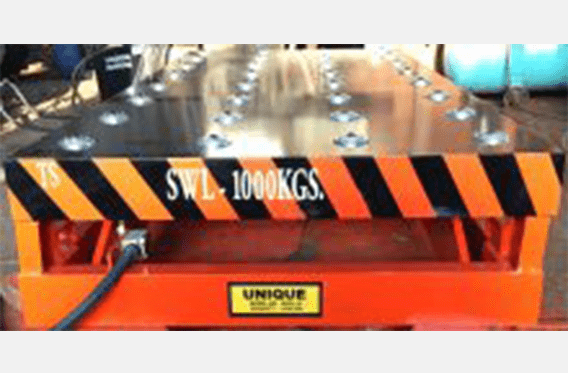

  1. CAPACITY : 1000 Kg
  2. TABLE SIZE : 2200 x 1200 mm
  3. LIFTING HEIGHT : 1800 mm

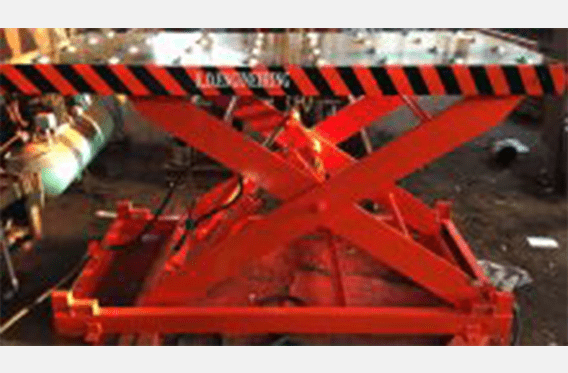

  4. NO. OF SCISSORS : 1

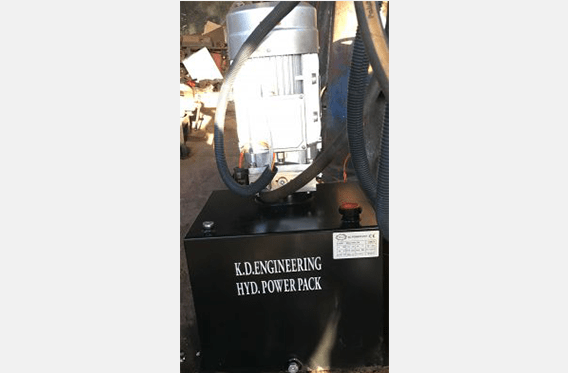

  5. 2 HP MOTOR, 3 PHASE AC POWER SCISSOR LIFT TABLE

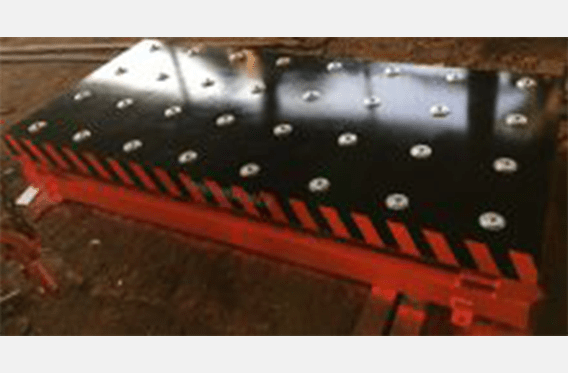

  6. BALL TRANSFER UNITS ENABLES USER TO SLIDE CARGO EASILY ON THE TABLE
  7. ULTRA LOW CLOSED HEIGHT OF 450 mm

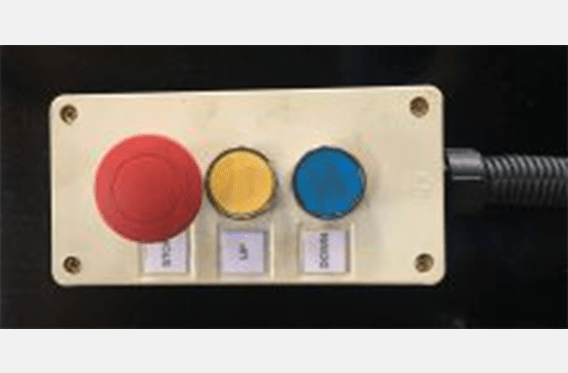

  1. PUSH BUTTON / PENDANT CONTROL WITH EMERGENCY STOP BUTTON
  2. HOSE BURST VALVE

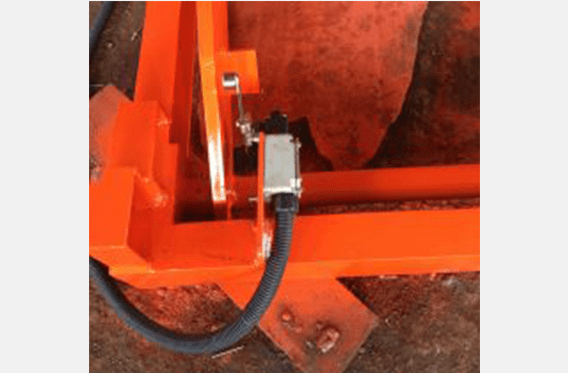

  3. LIMIT SWITCH PROVIDED
  4. MANUAL LOWERING VALVE PROVIDED IN CASE OF POWER FAILURE

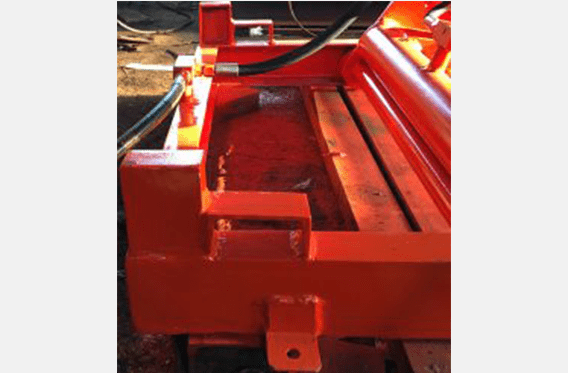

  5. 4 BRACKETS ON 4 CORNERS TO TRANSFER THE SCISSOR LIFT
  6. HYDRAULIC CYLINDER IS MADE UP OF HONED TUBE AND HARD CHROME PLATED PISTON ROD
