Foot Operated Manual Scissor Platform

Foot Operated Manual Scissor Platform

Let us introduce our spectacular arrange of Foot operated manual scissor platform that comes in two exciting models UFSL-20 and UFSL-35. The capacity of these platforms is up to 200kg which is quite impressive. Some of the other features include:

  1. Flow control valves powered by highly functional pressure gauge
  2. Spring-loaded along with push-handle
  3. Earth locks for increased performance
  4. Highly stable and 2 earth locks
  5. Mechanical stopper
  6. Adjustable lifting heights along with single operator maneuverability
Foot Operated Manual Scissor Platform
Foot Operated Manual Scissor Platform - 2
Hydraulic-Puller-Manufacturer-Mumbai
Foot Operated Manual Scissor Platform -4
Foot Operated Manual Scissor Platform -5
Foot Operated Manual Scissor Platform -7
Foot Operated Manual Scissor Platform- 8
Foot Operated Manual Scissor Platform - 9
MODEL NO. UFSL-20 UFSL-35
CAPACITY 200 Kg 200 Kg
PLATFORM SIZE 750 mm X 650 mm 1000 mm X 650 mm
CLOSED / MINIMUM HEIGHT 700 mm 900 mm
LIFTING HEIGHT 2000 mm 3500 mm
WORKING HEIGHT 4000 mm 5500 mm
WHEELS 4” dia X 2” width, 2 Swivel And 2 Fixed, Castor Wheel Polyurethane coated with bearing and lock 5” dia X 2” width, 2 Swivel And 2 Fixed, Castor Wheel Polyurethane coated with bearing and lock
MOC MS MS

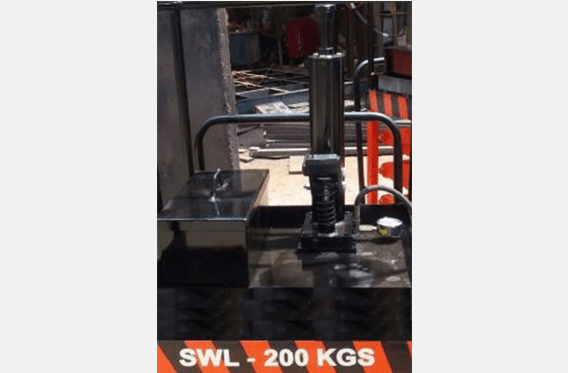

  1. FOOT PUMP IS PROVIDED ON PLATFORM
  2. SPRING LOADED PUSH PULL HANDLE
  3. PRESSURE GUAGE WITH FLOW CONTROL VALVE
  4. 2 NOS. EARTH LOCKS FOR EXTRA STABILITY
  5. METALLIC FIXED RAILING ON 3 SIDES FOR SAFETY OF PERSON STANDING ON PLATFORM
  6. FOOT REST FOR CLIMBING DOWN FROM ELEVATED PLATFORM
  7. LIFTING HEIGHT CAN BE ADJUSTED BY PERSON STANDING ON PLATFORM
  8. MECHANICAL STOPPER
  9. OPTIONAL TOOL BOX CAN BE PROVIDED ON PLATFORM IF REQUIRED
