Hydraulic Floor Crane

Hydraulic Mobile Floor Crane

Pooja International stocks Hydraulic Mobile floor crane belonging to the topmost quality standards. The innovative controls, exceptional operability, and smooth handling makes the device a unique one. Check out the following specs:

  1. Optimum durability
  2. Rugged construction
  3. Heavy-duty load carrying capacities
  4. Finds application in diverse workspaces
  5. 0.4 micron surface finish with attached cylinders
  6. Chrome-plated head to prevent corrosion
  7. Movable rear wheels for 360-degree coverage
  8. Fixed wheels in the front for complete control.

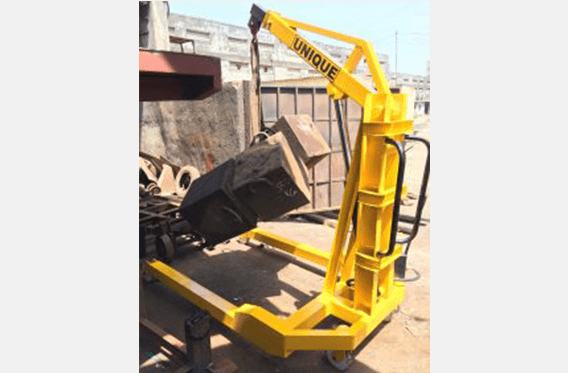

 Hydraulic Mobile Floor Crane

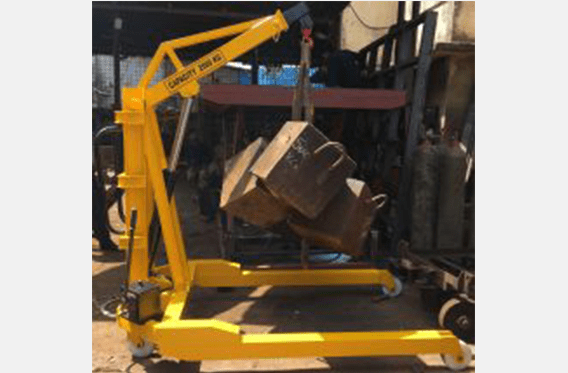

 Hydraulic Mobile Floor Crane - 1
 Hydraulic Mobile Floor Crane - 2

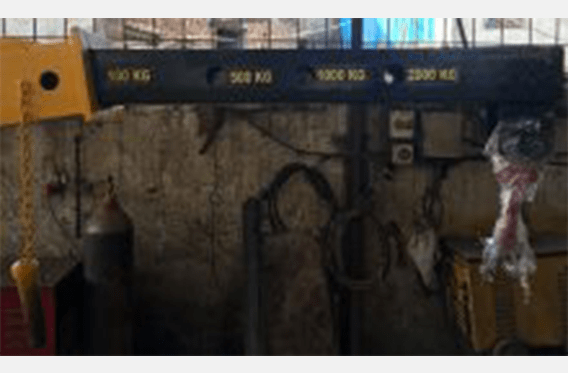

 Hydraulic Mobile Floor Crane - 3

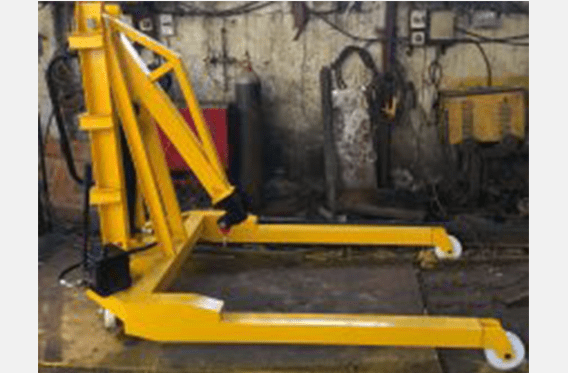

 Hydraulic Mobile Floor Crane - 4


Model



Capacity

Max.Lift ‘ML’ Min. Height ‘MH’ Max. Dist. betw.Legs ‘DL’ Weight

(Approximate)

  Tons MM MM MM Kg
UMC-1 1 2350 300 1025 200
UMC-2 2 2500 300 1150 250
UMC-3 3 2600 300 1150 250
  1. Heavy duty rugged construction for longer durability Foldable legs for easy carrying on different sites.
  2. Horizontal boom can be adjusted & locked in different positions Single acting, load returns cylinder operated by inbuilt hydraulic pump.
  3. Cylinder is honed to a surface finish of 0.4 microns.
  4. Front wheels are fixed and rear wheels are 360 movable for easy mobility
