Hydraulic Scissor Lift Platforms

Product Imges

Hydraulic Scissor Lift Platforms

Use of heavy and cumbersome ladders can be replaced by the multifunctional Hydraulic scissor lift platforms of our company. With sturdy wheels at the base and out riggers to provide stability, this machine is a good substitute of scaffolding in small and confined spaces. Safety features include auto shut-off, hose burst valve and manual solenoid release in case of sudden power failure. Provisions of utilizing either AC and DC power source or both are offered.

UNIQUE Hydraulic lifting tables are widely used all across the Indian Railways for applications like lifting and removing of 3 phase loco filter, lifting and removing of draft gear, FOR MOUNTING OF GEARCASE ASSEMBLY OF WDP4D DIESEL LOCOMOTIVES, Lifting and lowering of oil pumps of coaches, Lifting and lowering of compressors, Lifting and lowering of centre pivot block, Lifting and lowering of buffer springs, lifting and lowering of filters for locos, Hydraulic press for booster assembly, Stacking of material on racks, for stacking of pallets on the racks, scissor lifts with brake are used for lifting and shifting of heavy material, springs, compressors, LIFTING/LOWERING TROLLEY FOR TRANSFORMER OF WAG-9 LOCOMOTIVES

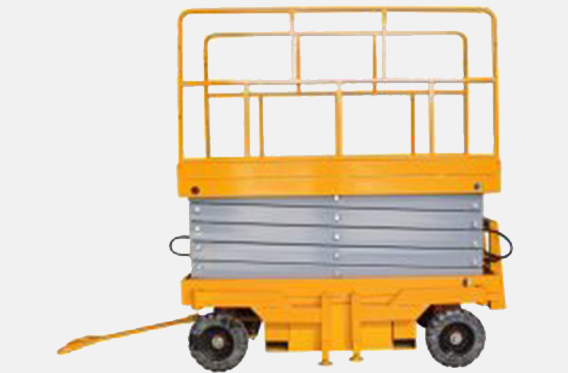

Hydraulic scissor lift platforms - 1
Hydraulic scissor lift platforms - 2

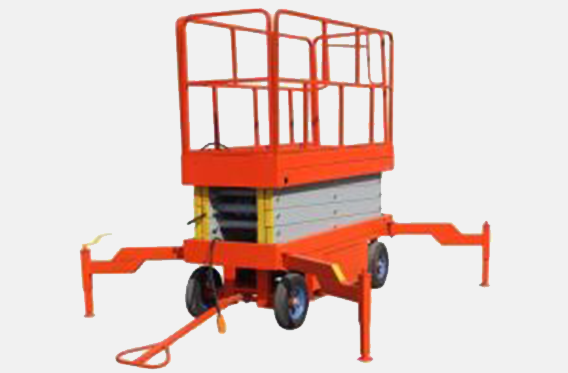

Hydraulic scissor lift platforms - 3
Model No. Platform Size (mm) Capacity (kg) Max Lifting Height (m) Max. Working Height (m) Min. Platform Height (m) Operation Overall Size (mm) Net Weight (kg)
UHSL-4 2100 x 830 500 4 6 1.1 AC / DC 2250 x 950 x 1100 800
UHSL-6 2100 x 830 500 6 8 1.2 AC / DC 2250 x 950 x 1200 800
UHSL-7 2100 x 830 500 7 9 1.3 AC / DC 2250 x 950 x 1280 970
UHSL-8 2100 x 930 500 8 10 1.4 AC / DC 2250 x 1060 x 1380 1050
UHSL-9 2100 x 830 500 9 11 1.5 AC / DC 2250 x 1060 x 1500 1165
UHSL-10 2100 x 1230 500 10 12 1.55 AC / DC 2250 x 1350 x 1530 1360
UHSL-11 2100 x 1230 500 11 13 1.65 AC / DC 2250 x 1350 x 1650 1400
UHSL-12 2550 x 1530 500 12 14 1.75 AC / DC 2796 x 1670 x 1750 2260
UHSL-14 2812 x 1530 500 14 16 1.82 AC / DC 3067 x 1730 x 1810 2400
UHSL-16 2812 x 1600 500 16 18 2.1 AC / DC 3067 x 1800 x 2080 3500
UHSL-18 3070 x 1600 500 18 20 2.1 AC / DC 3321 x 1810 x 2080 3900

    Features

  1. Nullifies scaffolding & Ladder in many application
  2. Wheels provided at base make shifting easy
  3. Out riggers provided good stability
  4. Offers smooth operation in small & confined places
  5. Used at any intermittent height
  6. Heavy Duty tyres
  7. Remote control Pendent

    Safety Provisions:

  1. Sound with Buzzer provided during UP / DOWN movement if required.
  2. Mechanical stopper provided for additional safety
  3. Limit Switch for auto shut off
  4. Pilot operated check. Valve freezes top platform in case of excess flow due to hose failure
  5. Electric power failure freezes top platform instantly due to check valve
  6. Hose burst valve
  7. Toeing handle for easy movement
  8. Manual solenoid release at the bottom in case of power failure

    Options:

  1. Option 1: Lifting And Lowering By AC Power (On Floor Movement :Manual By Push/Pull Handle )
  2. Option 2: Lifting And Lowering By DC Power (BATTERY) (On Floor Movement :Manual By Push/Pull Handle )
  3. Optional 3: Lifting And Lowering By both AC POWER AND DC (BATTERY) (On Floor Movement :Manual By Push/Pull Handle )
  4. Optional 4: Lifting And Lowering By DC BATTERY POWER (On Floor Movement : DC Power (Battery Operated )
