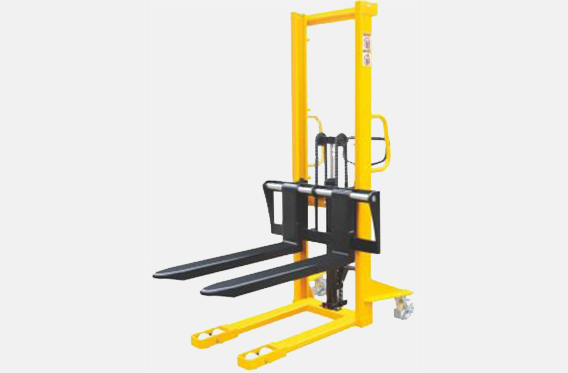

Our Manual hydraulic stackers come in diverse varieties. We stock model no VHS-1, VHS-1.5, and VHS 1.5A. Each and every device comes with adjustable forks and has a load capacity ranging from 1500 to 1000Q. Turning radius, overall width, and optimum lifting height of these devices are unique and ensure swift maneuverability. If you wish to deliver bulk projects within stipulated time, this equipment will turn out to be the best bet.
| Model No. | UHS- 1 | UHS-1.5 | UHS-1.5A
(Adjustable Forks) |
|
|---|---|---|---|---|
| Load Capacity | Q (kg) | 1000 | 1500 | 1500 |
| Load Centre | c (mm) | 600 | 600 | 500 |
| Fork Height, Lowered | h13 (mm) | 90 | 90 | 90 |
| Max Lifting Height | h3 (mm) | 1600 | 1600 | 1600 |
| Lowered Mast Height | h1 (mm) | 2080 | 2080 | 2090 |
| Extended Mast Height | h4 (mm) | 2080 | 2080 | 2150 |
| Fork Dimensions | s/e/l (mm) | 61/170/1100 | 61/170/1100 | 30/100/800 |
| Width Over Fork | b5 (mm) | 550 | 550 | 200-950 |
| Ground Clearance laden | m1 (mm) | 25 | 25 | 25 |
| Overall Length | l1 (mm) | 1655 | 1655 | 1640 |
| Overall Width | b1 (mm) | 755 | 755 | 1000 |
| Turning Radius | W (mm) | 1380 | 1380 | 1235 |
| Lift Speed Laden / Unladen | m/s | 21 | 21 | 21 |
| Lowering Speed Laden/Unladen | m/s | Manual Control | Manual Control | Manual Control |
| Wheels | Nylon | Nylon | Nylon | |
| Weight (Without Batteries) | Kg | 214 | 239 | 280 |
