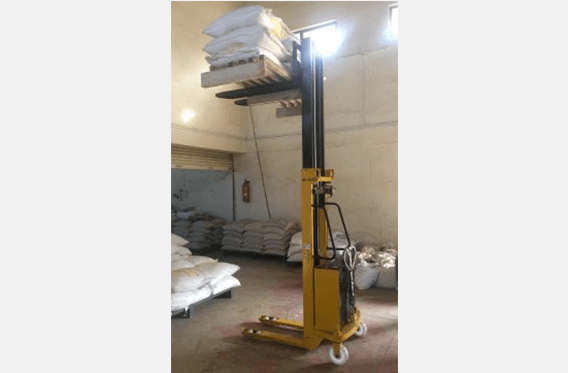

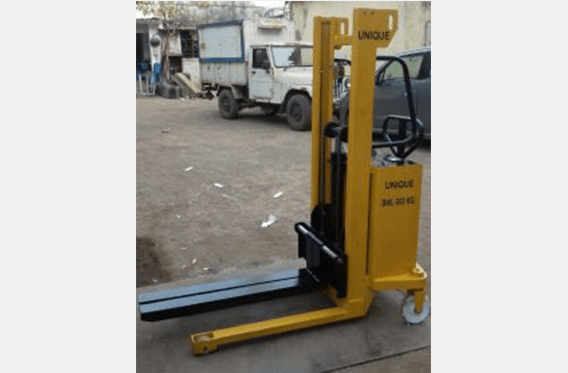

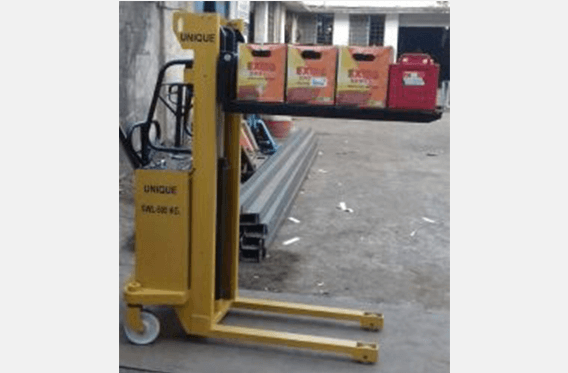

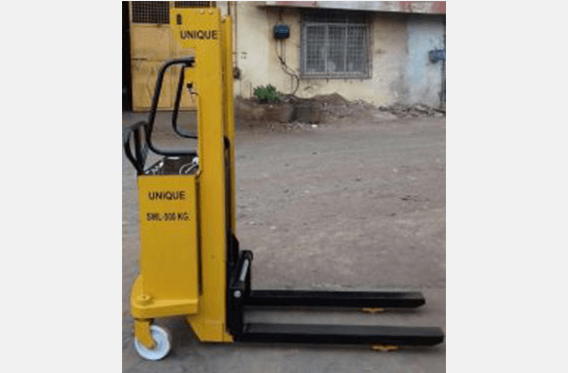

Check out the extensive collection of semi-electric stackers which have basic capacities ranging from 500-2000kg. The device has a strong and robust construction as well as ensures swift lifting. The heavy-duty wheels and handles ensure easy transportation and unique operability. You can experience unmatched efficiency as the lifting operation is entirely motorized. Availability of batteries enhance its performance to a great extent and the equipment has a compact design too.
| Model No. | USES- 1 | USES-1.5 | |
|---|---|---|---|
| Load Capacity | Q (kg) | 1000 | 1500 |
| Load Centre | c (mm) | 500 | 500 |
| Fork Height, Lowered | h13 (mm) | 90 | 90 |
| Max Lifting Height | h3 (mm) | 3000 | 3000 |
| Lowered Mast Height | h1 (mm) | 2090 | 2090 |
| Extended Mast Height | h4 (mm) | 3560 | 3560 |
| Fork Dimensions | s/e/l (mm) | 60/170/1070 | 60/170/1070 |
| Width Over Fork | b5 (mm) | 570 | 570 |
| Length to face of forks | l2 (mm) | 608 | 670 |
| Overall Length | l1 (mm) | 1678 | 1740 |
| Overall Width | b1 (mm) | 800 | 800 |
| Turning Radius | W (mm) | 1425 | 1505 |
| Aisle Width for pallet 800 x 1200 lengthways | Ast (mm) | 2267 | 2347 |
| Lift Speed Laden / Unladen | m/s | 0.07/0.09 | 0.07/0.09 |
| Lowering Speed Laden/Unladen | m/s | 0.1/0.13 | 0.1/0.13 |
| Battery Voltage | V/Ah | 12/120 | 12/120 |
| Tyre Size Front | mm | 180 x 50 | 180 x 50 |
| Tyre Size Rear | mm | 80 x 70 | 80 x 70 |
| Weight (Without Batteries) | Kg | 450 | 480 |
